| Bore Diameter (In) | : | 1.19 |
| Finish | : | Powder Coated |
| Inside Diameter (In) | : | 1-3/16 |
| Keyway Size (In) | : | 1/4 x 1/8 |
| Length Thru Bore (In) (Fraction) | : | 1-15/32 |
| Length Thru Bore (In) | : | 1.47 |
| Material | : | Cast Iron |

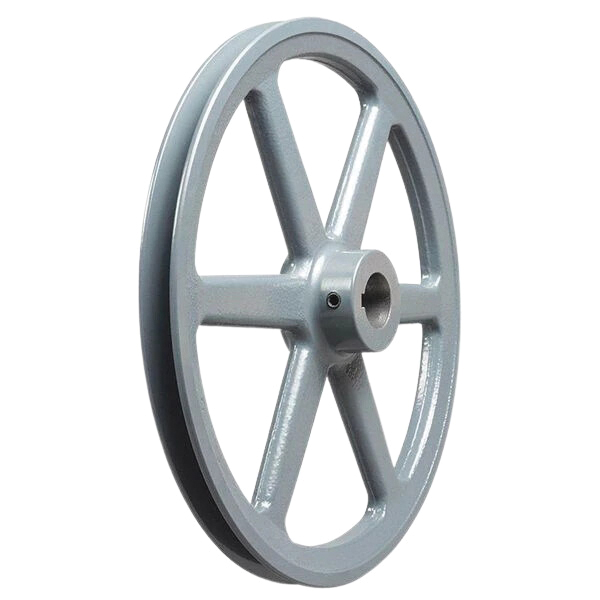

| New Long Description-500 | : | SHEAVE, V-BELT, 1-3/16IN INSIDE DIAMETER, 15.75IN OUTSIDE DIAMETER, 1.53IN OVERALL LENGTH, 1-15/32IN LENGTH THRU BORE, 7/8IN PITCH LENGTH, 1/4IN X 1/8IN KEYWAY, CAST IRON, POWDER COATED, 1 GROOVES, STATICALLY BALANCED, FOR 4L, A, 5L, B BELTS |
| New Short Description- 150 | : | SHEAVE,V-BELT,1-3/16IN ID,15.75IN OD,1.53IN OAL,1-15/32IN LENGTH THRU BORE,7/8IN PITCH LG,1/4IN X 1/8IN KEYWAY,CAST IRON,POWDER COATED,1 GROOVES |
| Number of Grooves | : | 1 |
| Outside Diameter (In) (Fraction) | : | 15-3/4 |
| Outside Diameter (In) | : | 15.75 |
| Overall Length (In) (Fraction) | : | 1-1/2 |
| Overall Length (In) | : | 1.53 |
| Pitch Diameter (In) | : | 15.2 |
| Pitch Length (In) | : | 7/8 |
