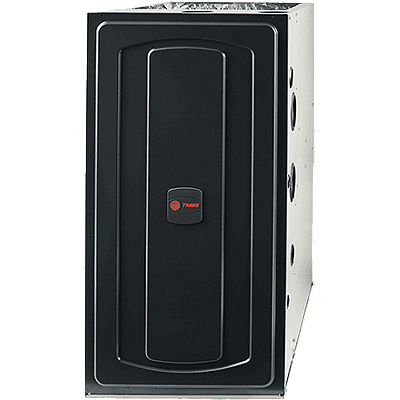

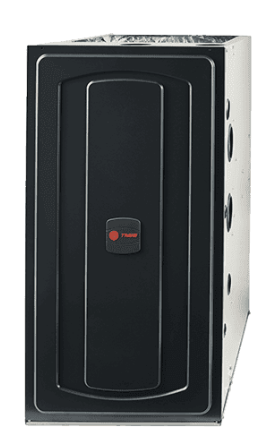

Trane S Series S9B1D120D5PSAA 5T 92.1 AFUE Condensing Single Stage Gas Furnace

AFUE Rating	:	92 %
Additional Information	:	Condensing Type, Round Type, Silicon Nitride Ignition System Element
Amperage Rating	:	14.1 A
Blower Size	:	11 in Dia x 10 in W in
CFM Rating	:	2000 cfm
Cabinet Dimensions	:	34 in H x 24-1/2 in W x 28-3/4 in D in
Configuration	:	Downflow
Connection Size	:	1/2 in
Energy Star Compliant	:	No
Finish	:	Baked-On Enamel
Frequency Rating	:	60 Hz
Fuel Type	:	Natural Gas
Fuse Rating	:	15 A
HP Rating	:	1 hp
Ignition System	:	Hot Surface
Input BTU Rating	:	120,000 Btu/hr
Material	:	Steel
Model Number	:	S9B1
Model	:	S9B1
Motor Type	:	PSC
Number of Burners	:	6
Number of Speeds	:	9
Number of Stages	:	Single
Output BTU Rating	:	115500 Btu/hr
Pressure Rating	:	0.5 in-WG
Rotational Speed	:	1075 rpm
Series	:	S Series
Temperature Rise	:	45 to 75 deg F
Tonnage	:	5.0 Ton
Vent Size	:	3 in
Voltage Rating	:	115/120 V
Width	:	24.5 in

Trane S Series - S9B1D120D5PSAA, 5T , 92.1% AFUE, 120,000 BTU, 120V, PSC Fan Motor, Downflow , Condensing Single Stage Gas Furnace

Efficient airflow design reduces electrical energy use34 inch tall- Lighter, easier to move and fit into tight spaces like short basements or tight closets Works great with larger, high-efficiency coilsImproved airflow efficiency,Single piece belly band/ motor arm assemblyRain shield over IFC keeps condensate off the controlThree–Way Multi-PoiseAt least 400 CFM/ton at 0.5 in. H20 external static pressure
