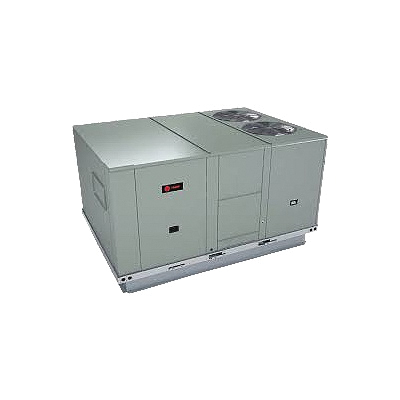

TRANE® Foundation™ GCC Series GCC180A4EMA1DQY Rooftop Gas/Electric Packaged Unit, 460 V, 10.8 to 12.1 A, 5400 cfm
TRANE® Foundation™ GCC Series GCC180A4EMA1DQY Rooftop Gas/Electric Packaged Unit, 460 V, 10.8 to 12.1 A, 5400 cfm
| Amperage Rating | : | 12.1 A |
| Blower Size | : | 28 in Dia |
| CFM Rating | : | 6,000 cfm |
| Coil Rating | : | 1 Row, 23 FPI, 34.74 sq-ft Face Area Outdoor, 2 Rows, 18 FPI, 26 sq-ft Face Area Indoor |
| Compressor Type | : | Scroll |
| Configuration | : | Convertible |
| Connection Size | : | 3/4 in Gas Pipe in |
| Decibel Rating | : | 9.5 dBA |
| Dimensions | : | 123-1/8 in L x 59-5/16 in H in |
| Drain Connection | : | 1 in Female Pipe in |
| Drive Type | : | Belt |
| EER Rating | : | 11 |
| Filter Size | : | (8) 20 x 25 x 2 in |
| Finish | : | Zinc-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 1 hp Outdoor Fan, 3 to 5 hp Indoor Fan hp |
| IEER Rating | : | 14.2 |
| Ignition Type | : | Direct Spark |
| Input BTU Rating | : | 180,000 Btu/hr |
| Material | : | Steel |
| Model | : | GCC |
| Number of Burners | : | 8 |
| Number of Stages | : | Two |
| Output BTU Rating | : | 259,000 Btu/hr |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1125 rpm Outdoor Fan, 1750/3450 rpm Standard/Oversized Indoor Fan rpm |
| SEER Rating | : | 14 |
| Series | : | Foundation |
| Steady State Efficiency | : | 81 % |
| Tonnage | : | 15 ton |
| Voltage Rating | : | 460 V |
| Wattage | : | 16.36 kW |
TRANE® Foundation™ Rooftop Gas/Electric Packaged Unit, Series: GCC Series, Input BTU Rating: 194000 Btu/hr Cooling, 320000 Btu/hr Heating, Output BTU Rating: 259200 Btu/hr, 460 V, 10.8 to 12.1 A, 16.36 kW Wattage, 1 hp Outdoor Fan, 3 to 5 hp Indoor Fan, 1125 rpm Outdoor Fan, 1750/3450 rpm Standard/Oversized Indoor Fan Rotational Speed, 60 Hz, 3 ph Phase, Scroll Compressor, Convertible, 5400 cfm, 14.2 IEER, 11 EER Rating, 14 SEER, Tonnage: 15 ton, 8 Burners, 2 Stages, R-410A Refrigerant, 9.5 dBA Decibel, Direct Spark Ignition, Belt Drive, Blower Size: 28 in Dia, 1 Row, 23 FPI, 34.74 sq-ft Face Area Outdoor, 2 Rows, 18 FPI, 26 sq-ft Face Area Indoor Coil, 3/4 in Gas Pipe Connection, 1 in Female Pipe Drain Connection, (8) 20 x 25 x 2 in Filter, 50 A Fuse Rating, 81 % Steady State Efficiency, Steel, Finish: Zinc-Coated, 123-1/8 in L x 59-5/16 in H
