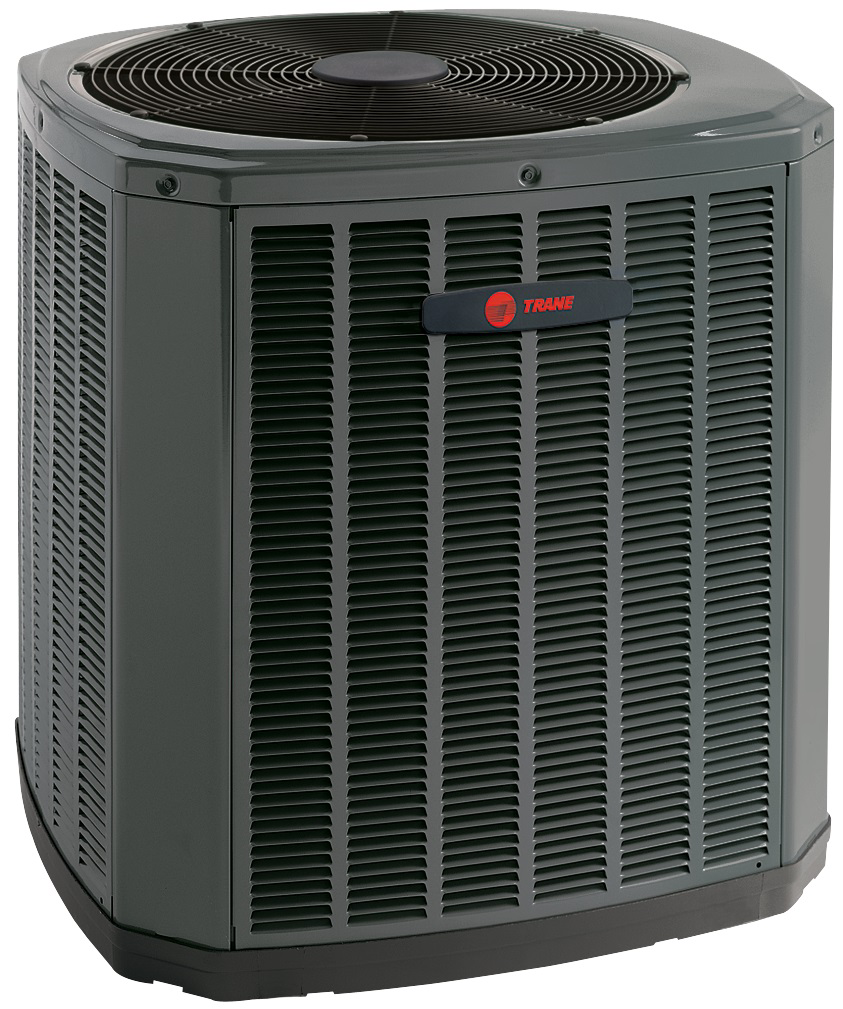

Trane 5TTR3018A1000A,Choice 1.5T. 13 SEER2, Single Stage Air Conditioner

BTU Rating	:	18,000 Btu/hr
MCA	:	9
Max Amps	:	20.0
Max Fuse	:	20 A
Model Number	:	5TTR3
Noise Level	:	71 dba
Nominal Capacity BTU Rating	:	18000
Number of Stages	:	Single Stage
Phase	:	1.0 ph
Power Supply	:	208/230 V/1 Phase/60 Hz
Product Family Series	:	Choice
Refrigerant Type	:	R-454B
SEER2 Range	:	13.4
SEER	:	20.0
Sound Level	:	71 dBA
Stages	:	1
Tonnage	:	1.5 Ton
Voltage	:	208/230 V

Trane 5TTR3018A1000A,Choice 1.5T. 13 SEER2, 18,000 BTU, 208/230V, R454B, Single Stage Air Conditioner

13 Single-Stage Air Conditioner outdoor products using R-454B refrigerantNew TXV and refrigeration designs that are optimized for maximum performance      using the new refrigerant.The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.
