| BTU Rating | : | 18,000 - 36,000 Btu/hr |
| CFM Rating | : | 600 - 1,200 cfm |
| Coil Circuitry | : | Heat Pump |
| Coil Type | : | Cased-A Coil |
| Configuration | : | Dedicated Upflow, Convertible to Horizontal Left |
| Connection Type | : | Brazed |
| Cooling Capacity | : | 32,000 BTU |
| Enclosure Type | : | Cased |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 3/4 |
| Material | : | Aluminum |
| Metering Device | : | Non-Bleed TXV |
| Model Number | : | 4PXCU |
| Nominal Capacity BTU Rating | : | 32000 |
| Refrigerant Type | : | R-410A |
| Series | : | 4PXC |
| Tonnage | : | 1.5-3.0 Ton |
| Width | : | 14.5 in |

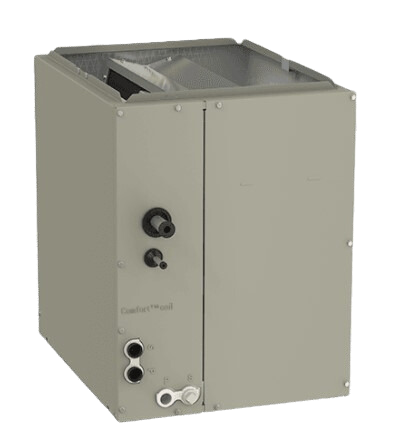

Trane - 4PXCAU32BS3HAB, 1.5-3T, R410A, 32,000 BTU, Multi Position with Kit, Heat Pump Cased A-Coil with TXV
The dedicated Upflow and Downflow coils are designed for cooling and heat pump applications. The coil uses 3/8" seamless aluminum tubing mechanically bonded to aluminum plate fin.Refrigerant for the PXC is controlled with a factory installed Non-Bleed TXV refrigerant control. Refrigerant connections are brazed fittings.The coil cabinet has a removable front and interior access panel for evaporator coil entering air surface cleaning.Upflow coils can be converted to horzontal left and downflow coils can be converted to horizontal right with optional kit purchased separatelycoils are A.H.R.I. certified with Trane and American Standard's matching condensing units.
