| Additional Information | : | 200 um Vacuum Capability |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Push |
| Connection Type 2 | : | Flared |
| Connection Type | : | Push-Fit|Flared |
| Fitting Type | : | Adapter |
| For Use With | : | R-125, R-134A, R-32, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-427A, R-438A, R-444A, R-447A, R-447B, R-448A, R-449A, R-450A, R-452A, R-452B, R-452C, R-454A, R-454B, R-454C, R-457A, R-459A, R-507A, R-513A, R-513B, R-718, R-1234zE, R-1234YF, R-290 and R-600A Refrigerant |
| Material Construction | : | Forged Brass |
| Material | : | Brass |
| Pressure Rating | : | 700 psi |
| Temperature Rating | : | -40 to 250 deg F |
Streamline® Refrigerant Brass Push Fittings are for use in HVAC applications. Available in sizes ranging from 1/4" to 7/8" in outside diameter, these non-removable fittings are designed to join ASTM B280 and ASTM B88 hard-drawn copper tube (Types ACR, K, L) as well as ASTM B280 and ASTM B1003 soft (annealed) copper tube.

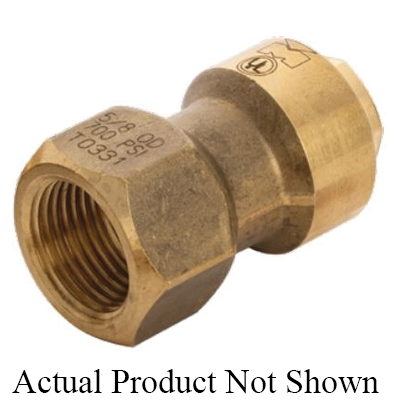

Streamline® SAE Adapter, Adapter Fitting, 1/2 in Connection Size 1, Connection Type 1: Push, 1/2 in Connection Size 2, Connection Type 2: Flared, Push-Fit|Flared Connection, Brass, Material Construction: Forged Brass, For Use With: R-125, R-134A, R-32, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-427A, R-438A, R-444A, R-447A, R-447B, R-448A, R-449A, R-450A, R-452A, R-452B, R-452C, R-454A, R-454B, R-454C, R-457A, R-459A, R-507A, R-513A, R-513B, R-718, R-1234zE, R-1234YF, R-290 and R-600A Refrigerant, 700 psi, -40 to 250 deg F, Additional Information: 200 um Vacuum Capability
- Patented push-fit technology designed for common air conditioning and heat pump installs and repairs
- Allows for permanent tool-free and flame-free connections
- Ideal for repair and remodel projects
- Compatible with common refrigerants & oils
- Robust one-piece forged brass body
- Proprietary BackBite™ Grip Ring Technology
- Double o-ring sealing
- Clean, clear poly bags
- 10 year warranty
- Made in the USA
