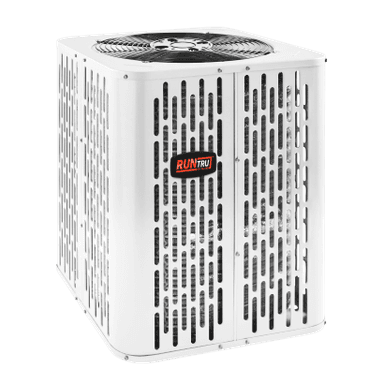

RunTru A5HP4018A1000A, A5HP5, 1.5T, 14.3 SEER2, Single Stage Heat Pump
RunTru A5HP4018A1000A, A5HP5, 1.5T, 14.3 SEER2, Single Stage Heat Pump
Manufacturer: Trane International Inc
Brand: RUNTRU® By Trane
Part #: 384849
MPN: A5HP4018A1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | Outdoor Unit: Compressor LRA: 47.5|Outdoor Unit: Compressor RLA: 7.8|Outdoor Unit: Compressor Type: Scroll|Outdoor Unit: Fan Motor FLA: 0.64|Outdoor Unit: Refrigerant Control: Expansion Valve|Power Supply: 208/230 V/1 Phase/60 Hz|Refrigerant Charge lbs: 4 lbs-12 oz|Refrigerant Control: TXV|Refrigerant Type: R-454B|Rows - Fins per Inch: 24|SEER: 15|Sound Rating (dB): 75 dBA|System Control Type: 24 V|Tonnage: 1|Tube Size (in): 3/8 |
| BTU Cooling Rating | : | 18,000 Btu/hr |
| Blower Diameter | : | 23 in |
| Blower Motor Type | : | PSC |
| Br. Cir. Prot. Rating. - Max (Amps) | : | 12 |
| Charging Specification Subcooling | : | 9 deg F |
| Compressor Insulation/Sound Blanket | : | No |
| Compressor LRA | : | 47.5 |
| Compressor RLA | : | 7.8 |
| Compressor Stages | : | Single Stage |
| Compressor Sump Heater Factory Installed | : | No |
| Compressor Type | : | Scroll |
| Crated Dimensions (H X W X D) | : | 38-3/10 x 31-1/10 x 31-1/10 in |
| Elec Hertz | : | 60 Hz |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| Factory Charged | : | Yes |
| Family Description | : | R-454B Heat Pump |
| Fin Type | : | Aluminum |
| Frequency Rating | : | 60 Hz |
| Full Load Amperage (FLA) | : | 0.64 |
| Fuse Rating | : | 20 A |
| HSPF2 Range | : | 7.5 |
| Line Size - Liquid (in) | : | 5/16 |
| Line Size - Suction (In) | : | 3/4 |
| Liquid Line (OD) | : | 5/16 in |
| MCA | : | 12 |
| Max Breaker Size, Without Electric Heater (Amps) | : | 20 |
| Max Fuse | : | 20 A |
| Motor Power Rating | : | 208/230 V/1 Phase/60 Hz |
| Motor Speed | : | 850 rpm |
| Number of Stages | : | Single |
| Outdoor Coil-FPI | : | 24 |
| Outdoor Coil-Face Area sq-ft | : | 18.75 |
| Outdoor Coil-Rows | : | 2 |
| Outdoor Coil-Tube Size (In) | : | 3/8 |
| Outdoor Coil-Type | : | All-Aluminum |
| Outdoor Fan - CFM | : | 2980 |
| Outdoor Fan - Diameter In | : | 23 |
| Outdoor Fan - Drive | : | Direct |
| Outdoor Fan - HP | : | 1-1/8 |
| Outdoor Fan - Number of Speeds | : | 1 |
| Outdoor Fan - Speed | : | 850 |
| Outdoor Fan - Type | : | Propeller |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 14.3 |
| SEER2 Range | : | 7.5 |
| Series | : | A5HP4 |
| Sound Level | : | 75 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 1.0 Ton |
| Volts | : | 208/230 V |
RUNTRU® By Trane A5HP4018A1000A, A5HP5, 1.5T, 14.3 SEER2, 18,000 BTU, 208/230V, 7.5 HSPF, R454B, Single Stage Heat Pump
14.3 SEER2 heat pumps meet 2025 Low Global Warming Potential (Low GWP) regulatory criteria using R-454B refrigerantThe outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.Refrigeration system controls include condenser fan, compressor drive and low and high pressure switches.The compressor features external over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.
