MODINE 72039 Unit Heater, 115 V, 9.85 A, 90.8 kW, 310000 Btu/hr BTU, 1 ph-Phase, Natural Gas Fuel
MODINE 72039 Unit Heater, 115 V, 9.85 A, 90.8 kW, 310000 Btu/hr BTU, 1 ph-Phase, Natural Gas Fuel
| Amperage Rating | : | 9.85 A |
| BTU Rating | : | 310000 Btu/hr |
| CFM Rating | : | 5400 cfm |
| Connection Size | : | 3/4 in |
| Dimensions | : | 42.53 in L x 39.56 in W |
| Domestic/Import | : | Domestic |
| Fan Size | : | 26 in |
| Finish | : | Aluminized |
| Flow Rate | : | 765 fpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 3/4 hp |
| Heat Throw | : | 67 ft |
| Ignition Type | : | Direct Spark |
| Motor Type | : | PSC |
| Mounting Height | : | 19 ft |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 90.8 kW |
| Rotational Speed | : | 1125 rpm |
| Vent Size | : | 4 in |
| Voltage Rating | : | 115 V |

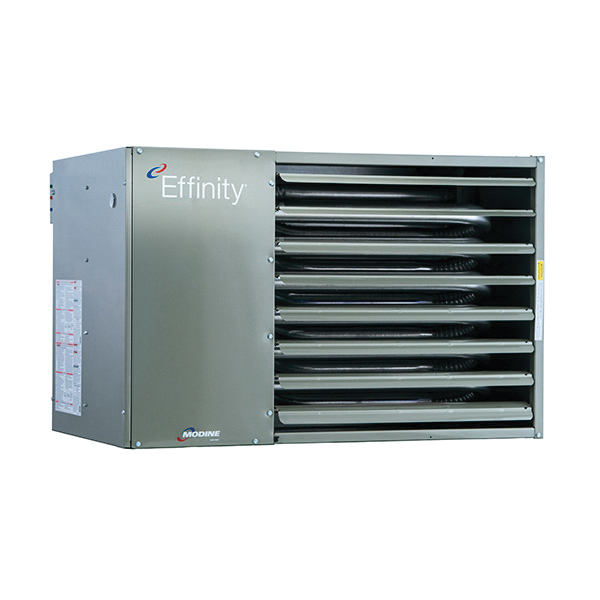

Operating at up to 97% thermal efficiency, Modines Effinity™ condensing unit heater features the highest efficiency available in North America for commercial and industrial gas fired unit heaters, which will dramatically lower energy costs and CO2 emissions. This industry leading efficiency is a result of the coupling of our secondary heat exchanger technology with our robust tubular primary heat exchanger design. The Effinity™ guards against mold and maintains uniform wall to wall temperatures with consistent air circulation. All units are equipped with building management system (BMS) integration capabilities, allowing them to be added to existing BMS easily.
MODINE Unit Heater, 310000 Btu/hr, 115 V, 9.85 A, 765 fpm, 5400 cfm CFM Rating, 3/4 hp HP Rating, 90.8 kW, 1 ph, 60 Hz, 3/4 in, Natural Gas, 26 in Fan Size, PSC Motor, 1125 rpm Rotational Speed, 4 in Vent Size, Direct Spark Ignition, 1 Stage, 19 ft Mounting Height, 67 ft Heat Throw, Aluminized, 42.53 in L x 39.56 in W, Domestic
- Separated combustion - drawing combustion air from outside to ensure that the unit will always have plenty of fresh, clean air for combustion while increasing the overall heating efficiency
- Helps promote a clean air growing environment - combustion fumes are vented outside, away from your plants
- Fuel savings - up to 97% efficiency allows you to save otherwise wasted energy and money
- Dependable and consistent performance accompanies Modines concervicore technology - providing power exhauster and dual heat exchangers
- The secondary heat exchanger is made of AL29-4® stainless steel and comes with a 10 years warranty eliminating corrosion concerns and extending the life of your investment
- Building management system integration capabilities allow these units to be added easily to any existing system

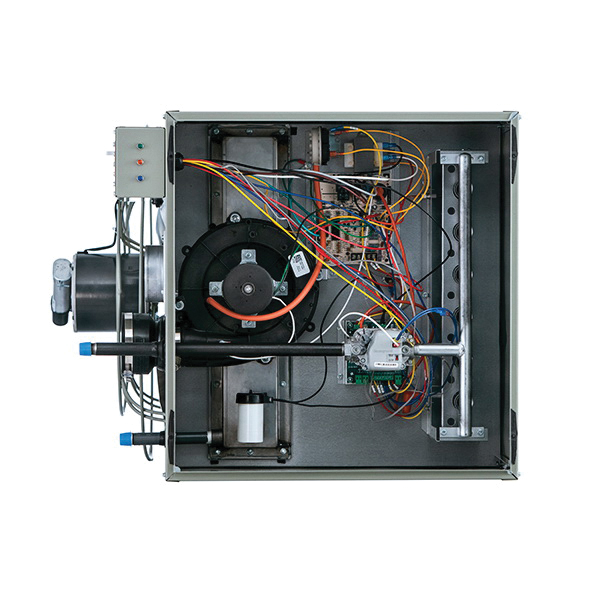

- Contractor convenience package featuring a condensate pump convenience outlet, unit on/off switch, heater function status indicator lights and external terminals for thermostat wiring
- Just one Effinity™ can lower CO2 output by thousands of pounds annually
- Designed, engineered and assembled in the USA
