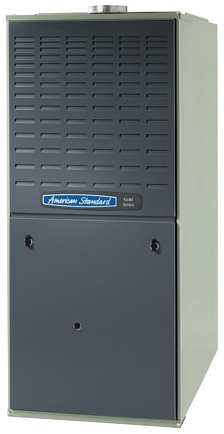

American Standard Platinum Series AUD2B060A9V3VB 5T 80 AFUE Non-Condensing Two Stage Gas Furnance

AFUE Rating	:	80 %
Amperage Rating	:	10.5 A
Blower Size	:	10 in Dia x 7 in W in
Cabinet Dimensions	:	17-1/2 in W x 28-1/2 in D x 40 in H in
Configuration	:	Multi - Position
Energy Star Compliant	:	No
Finish	:	Galvanized
Frequency Rating	:	60 Hz
Fuel Type	:	LP Gas
Fuse Rating	:	15 A
HP Rating	:	1/2 hp
Ignition System	:	Silicon Nitride Hot Surface
Input BTU Rating	:	60,000 Btu/hr
Material	:	Steel
Model Number	:	AUD2
Model	:	AUD2
Motor Type	:	ECM
Number of Burners	:	3
Number of Stages	:	Two
Phase	:	1 ph
Series	:	Platinum
Temperature Rise	:	30 to 60 deg F
Tonnage	:	3.0 Ton
Vent Size	:	4 in Dia in
Vent, Ducted or Ductless	:	Vented
Voltage Rating	:	115/120 V
Width	:	17.5 in

American Standard Platinum Series - AUD2B060A9V3VB, 5T , 80% AFUE, 60,000 BTU, 115V, Variable ECM Fan Motor. Multi-Position, Non-Condensing Two Stage Gas Furnance

The Integrated System Control has solid state devices, which continuously monitor for presence of flame, when the system is in the heating mode of operation.Durable, cycle tested, heavy gauge aluminized steel heat exchanger quickly transfers heat to provide warm conditioned air to the structure. Low energy power vent blowerMulti-port, in-shot burners will give years of quiet and efficient service. All models can be converted to L.P. gas without changing burners.The variable speed, directdrive blower motor, with sufficient airflow range for most heating and cooling requirementsHeavy gauge steel and "wrap-around" cabinet constructionThese High Efficiency Gas Furnaces employ a Hot Surface Ignition system, which eliminates the waste of a constantly burning pilot.
